How To Setup An Headless Ubuntu 12.04 VirtualBox Host With PHPvirtualbox

How To Setup An Headless Ubuntu 12.04 VirtualBox Host With PHPvirtualbox

I’m going to setup the headless VirtualBox server and Virtual Machine management console using phpvirtualbox which is a web-based frontend written in PHP.

This is a very basic Ubuntu 12.04 LTS server with only OpenSSH services installed so I’m going to need to add a few packages.

Let’s get started…

I’ll need to install an editor:

sudo apt-get install nano

And something to extract zip files:

sudo apt-get install unzip

Add the virtualbox repository to aptitude by editing the sources.list file:

sudo nano /etc/apt/sources.list

At the bottom of the file paste this line:

deb http://download.virtualbox.org/virtualbox/debian precise contrib

Download and install the VirtualBox public key:

wget -q http://download.virtualbox.org/virtualbox/debian/oracle_vbox.asc -O- | sudo apt-key add –

Update aptitude:

sudo apt-get update

I’m going to need to install some web-services to support the phpvirtualbox management software. I’ll be using Apache2 for this:

sudo apt-get install apache2-mpm-prefork apache2-utils apache2.2-bin apache2.2-common apache2 apache2-doc apache2-suexec libapache2-mod-php5 libapr1 libaprutil1 libaprutil1-dbd-sqlite3 libaprutil1-ldap libapr1 php5-common php5-mysql php5-suhosin php-pear

Restart the Apache Web Server:

sudo /etc/init.d/apache2 restart

I’ll need the wget package to download the phpvirtualbox management console and virtualbox extensions from the web:

sudo apt-get install wget

Install virtualbox 4.2.10:

sudo apt-get install virtualbox-4.2 4.2.10

Download the extension pack:

wget http://download.virtualbox.org/virtualbox/4.2.10/Oracle_VM_VirtualBox_Extension_Pack-4.2.10-84104.vbox-extpack

Install the extension pack:

sudo VBoxManage extpack install Oracle_VM_VirtualBox_Extension_Pack-4.2.10-84104.vbox-extpack

Create a user for VirtualBox:

sudo adduser vboxadmin

Make this users primary group the vboxusers group:

sudo usermod -g vboxusers vboxadmin

Create the /etc/default/virtualbox file:

sudo nano /etc/default/virtualbox

And add this line:

VBOXWEB_USER=vboxadmin

Create the system links and start the virtualbox web service:

sudo update-rc.d vboxweb-service defaults
sudo /etc/init.d/vboxweb-service start

Now I’m going to go into the html root for the server:

cd /var/www

Download the phpvirtualbox zip package:

sudo wget https://phpvirtualbox.googlecode.com/files/phpvirtualbox-4.2-4.zip

Extract the software:

sudo unzip phpvirtualbox-4.2-4.zip

Rename the phpvirtualbox folder:

sudo mv phpvirtualbox-4.2-4 phpvirtualbox

Copy the example configuration file:

sudo cp config.php-example config.php

And edit that file:

sudo nano config.php

You’ll need to edit the lines for username and password:

/* Username / Password for system user that runs VirtualBox */
var $username = ‘vboxadmin‘;
var $password = ‘vboxadminspassword‘;

Our installation is now complete and you can login to the phpvirtualbox front-end by browsing to:

http://yourserver/phpvirtualbox

The default username and password are both admin

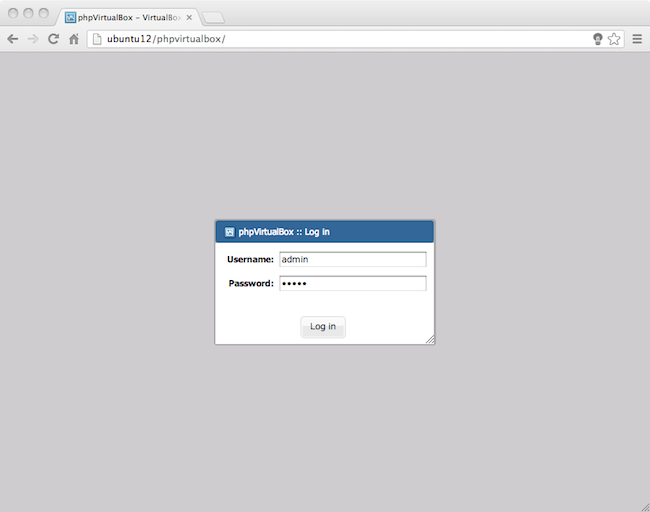

phpvirtualbox login screen

Welcome to the phpvirtualbox web-based management console for your headless Ubuntu 12.04 LTS Virtual Machine Host.

phpvirtualbox web-based management console
